CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine Price
The CW61100 is a heavy-duty horizontal lathe featuring a reinforced cast iron bed and a maximum swing diameter of 1000mm. It is equipped with an 18-speed gearbox and a 105mm spindle bore. It can meet the precision machining needs of ultra-large workpieces such as large rolls and turbine shafts.
Product features:
1. One-piece bed adopts high strength iron to ensure rigidity and precision.
2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
3. Headstock gears hardened and ground to achieve precision and low noise.
MANUAL CHUCK:The standard version is equipped with a 3-jaw or 4-jaw manual chuck
FOUR-STATION TOOL HOLDER:Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
GEAR SPINDLE BOX:Classic gear shifting device, gear engagement is more accurate/fast
STEADY REST:Steady rest are optional accessories, need extra cost.
QUENCHED TAILSTOCK:The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
2 AXIS DRO:2 axis digital readoutis optional accessory,clinets can choose it asrequirement.
Product specification:
| Model | Unit | CW61100 | CW61100 |
| Maximum rotation diameter on the bed | mm | 1000 | 1000 |
| Rotation diameter on the tool holder | mm | 720 | 680 |
| Maximum workpiece length | mm | 1500/200/3000 | 1500/2000/3000 |
| Spindle through hole diameter | mm | 105 | 105 |
| Spindle front end taper hole diameter and center taper | mm | 120,1:20 | 120,MT6 |
| Spindle speed series and range | r/min | 7.5-1000 (18kinds) | 18,5.4-720 |
| Vertical feed level and range | Range 1:1 | mm/r | 0.06-1.52(64kinds) | 0.06-1.52(64kinds) |
| Range 16:1 | mm/r | 1.6-24.3(64kinds) | 1.6-24.3(64kinds) |
| Micro feed range with exchange gear | mm/r | 0.06-0.912 | 0.06-0.912 |
| Ratio of lateral feed to longitudinal feed | — | 1/2 | 1/2 |
| Machine tool lead screw pitch | mm | 12 | 12 |
| Thread type and range | Metric thread | mm | 1-240 (50kinds) | 1-240 (50kinds) |
| British thread | tpi | 14-1 (26kinds) | 14-1 (26kinds) |
| Module thread | mm | 0.5-120 (53kinds) | 0.5-120 (53kinds) |
| Diameter pitch thread | tpi | 28-1 (24kinds) | 28-1 (24kinds) |
| Maximum horizontal stroke of lower tool rest | mm | 420 | 390 |
| Maximum stroke of upper tool rest | mm | 200 | 200 |
| Stroke of end sleeve | mm | 250 | 250 |
| Tip of end sleeve | — | MT6 | MT6 |
| Width and quenching hardness of bed rail | mm | 550mm RC52 | 600mm RC52 |
| Hardness of bed rail | RC | 52 | 52 |
| Main motor power | kW | 11 | 11 |
| Fast motor power | kW | 1.1 | 1.1 |
| Cooling pump motor power | kW | 0.9 | 0.9 |
| Lathe weight | kg | 3800/4200/5000 | 4500/4700/5500 |
| Machine outline dimensions (length × width × height) | mm | 3600/4100/5100*1530*1870 | 3600/4200/5200*1500*1700 |

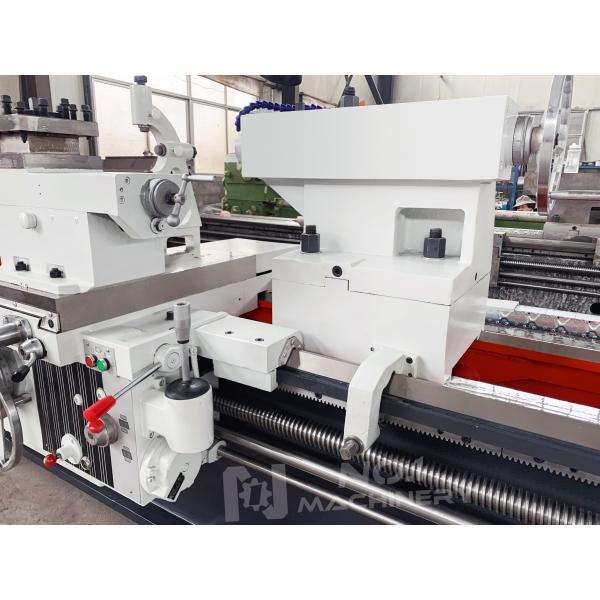

Details Display:
