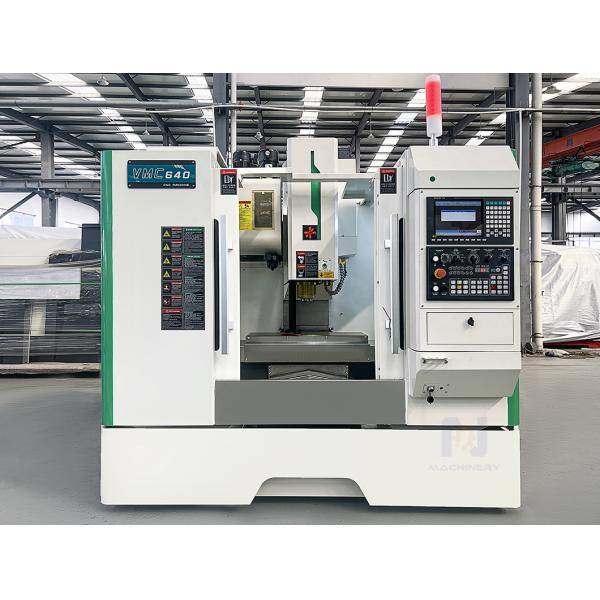

VMC640 3 Axis GSK Control System Vertical CNC Machining Center with Automatic Tool Changer

Name: VMC640 3 Axis GSK Control System Vertical CNC Machining Center with Automatic Tool Changer
Brand: Zaozhuang NO.1
Price: 16000 USD

China VMC640 3 Axis GSK Control System Vertical CNC Machining Center with Automatic Tool Changer wholesale

Brand Name : Zaozhuang NO.1

Model Number : VMC640

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1

Price : 16000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit

Packaging Details : Export standard wooden case or as customers'requirement

Spindle motor power : 5.5kw

External dimensions : 2000*1800*2450mm

Weight of machine tool : 2800kg

Form of Tool Bank : Hat/Disc

Tool change time : 2.5sec

The capacity of knife storage : 16T

Contact Now

VMC640 3 Axis GSK Control System Vertical CNC Machining Center with Automatic Tool Changer

Product Description

Machining center series products,capable of milling,drilling,tapping,and boring,are suited for a wide range of applications—from precision mold aerospace parts production to batch rocessing of high-precision components,and adapt to all stages from rough to finish machining.

Standard Configuration:

1.SYNTEC 22MA control system

2.Taiwan HIWIN 3 axis roller linear rails

3.BT40 Taiwan 8000 RPM spindle

4.Taiwan OKADA 16 Hat ATC

5.Taiwan HIWIN screw

6.Electrical cabinet cold air exchanger

Product Specification

MODEL	unit	VMC640
Size of worktable	mm	800*300
T-shaped groove for table	mm	3-16*80
Maximum load on table	kg	200
X/Y/Z rail width	mm	30/30/30
X/Y/Z ball screw specification	mm	3010/3010/3010
X/Y/Z Axis stroke	mm	600360450
X/Y/Z motor torque	NM	6/6/10(Contracting brake)
Spindle face to table position	mm	120-520
Distance from Spindle Center to column	mm	380
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	48/48/48
Spindle end taper/diameter	mm	BT40-120
Spindle motor power	kw	5.5
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Hat/Disc
The capacity of knife storage	tools	16
Maximum tool diameter/weight	mm/kg	78/90/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005

Product Display

VMC640 3 Axis GSK Control System Vertical CNC Machining Center with Automatic Tool Changer
