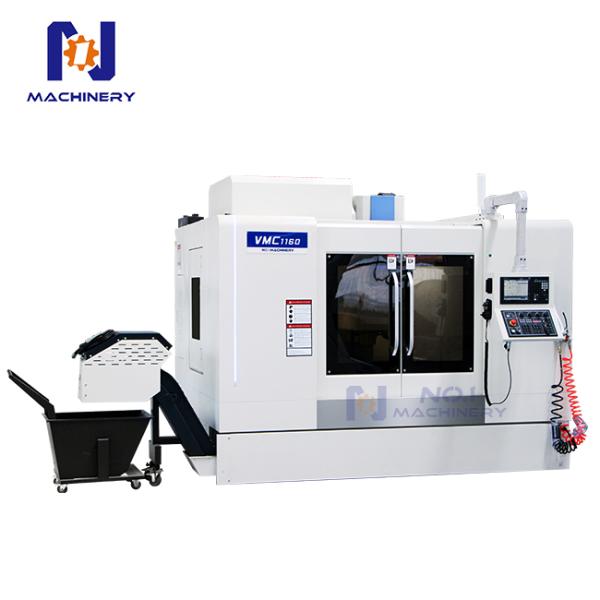

VMC1160 Vertical Machining Center BT40 CNC Milling Machine For Metal

  • 1
  • 2
  • 3

Brand Name : Zaozhuang NO.1

Model Number : VMC1160

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 24000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1200*600

Spindle end taper/diameter : BT40

Maximum load on table（kg） : 800

X/Y/Z Axis stroke（mm） : 1100*600*600

Spindle speed（rpm） : 8000/10000/12000

Machine weight(kg) : 6800

Overall size(mm) : 3200*2450*2650

Contact Now

VMC1160 Vertical Machining Center BT40 CNC Milling Machine for Metal
Application:
The CNC machine tool features an optimized structure and shape design, characterized by compactness, rational layout, and enhanced rigidity. It is capable of machining a wide range of workpieces, including flat plates, shells, and complex components such as molds and CAM-designed parts. The machine performs drilling, milling, and tapping operations, making it well-suited for batch production. It effectively meets the processing needs for drilling, tapping, and milling of small to medium-sized workpieces.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
Item Model
Unit
VMC1160
Size of worktable
mm
1200*600
T-shaped groove for table
mm
5-18*100
Maximum load on table
kg
800
X/Y/Z rail width
mm
45/45/45
X/Y/Z ball screw specification
mm
4012/4012/4012
X/Y/Z Axis stroke
mm
1100*600*600
X/Y/Z motor torque
NM
18/18/28(Contracting brake)
Spindle face to table position
mm
120-720
Distance from Spindle Center to column
mm
650
Cutting feed rate
mm/min
1-8000
X/Y/Z axis fast feed
m/min
24/24/24
Spindle end taper/diameter
mm
BT40-150
Spindle motor power
kw
1
Maximum spindle speed
rpm
8000
Form of Tool Bank
-
Disc
The capacity of knife storage
tools
24
Maximum tool diameter/weight
mm/kg
78/120/8
Tool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.005
Weight of machine tool
kg
6800
External dimensions
mm
3200*2450*2650
Product Display

VMC1160 Vertical Machining Center BT40 CNC Milling Machine For Metal

VMC1160 Vertical Machining Center BT40 CNC Milling Machine For Metal

VMC1160 Vertical Machining Center BT40 CNC Milling Machine For Metal
