3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine

Name: 3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine
Brand: Zaozhuang NO.1
Price: 45000 USD

China 3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine wholesale

Brand Name : Zaozhuang NO.1

Model Number : HMC1075

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 45000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1300X600

X/Y/Z Axis stroke（mm） : 1000*750*650

pindle end taper/diameter（mm） : BT40

Maximum spindle speed（rpm） : 8000

T-shaped groove for table（mm） : 5-18x100

Maximum load-bearing table（kg） : 800

Main motor power（kw） : 7.5/11

Contact Now

High Quality 3-Axis Horizontal Machining Center HMC1075 CNC Milling Machine

Product Description:

The HMC1075 is a cross table horizontal machining center known for its high precision and efficiency in machining various parts. With its robust machine body and rigid cast iron bed, the machine can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency. The machine center also boasts multi-axis control capabilities, the worktable can rotate 360 degrees, enabling complex cutting operations and multi-sided machining.

Standard Configuration:

1.syntec 22ma control  system

2.Bt50 Taiwan 8000 RPM spindle

3.Taiwan  hiwin screw

4.Taiwan hiwin roller linear rails

5.Taiwan OKADA 24 -Disc- atc

6.Z-axis 4 rail

Product Specification:

  	 			Item Model
 			Unit
 			HMC1075

 			Size of worktable
 			mm
 			1300*600

 			Table travel around
 			mm
 			1000

 			Forward and backward travel of workbench
 			mm
 			750

 			Up and down stroke of spindle box
 			mm
 			600

 			Distance from spindle center to worktable surface
 			mm
 			150-900

 			Distance from spindle end to table center
 			mm
 			90-690

 			T-shaped groove for table
 			mm
 			5-18*100

 			Maximum load-bearing table
 			kg
 			800

 			Main motor power
 			kw
 			7.5/11

 			Spindle Taper

 			BT40

 			Spindle speed
 			rpm
 			8000

 			Cutting feed rate
 			mm/min
 			1-10000

 			Fast speed
 			m/min
 			24/12/24

 			X/Y/Z ball screw specification
 			-
 			4012/5010/4012

 			X/Z Axis rail specification
 			-
 			45/55

 			Tool Magazine
 			-
 			Disc

 			Maximum tool diameter
 			mm
 			112/200

 			Maximum too length
 			mm
 			400

 			Maximum weight of tool
 			kg
 			18

 			Tool exchange time
 			sec
 			3

 			Minimum set unit of machine tool
 			mm
 			0.001

 			X/Y/Z orientation accuracy
 			mm
 			±0.0075

 			X/Y/Z repeated positioning accuracy
 			mm
 			±0.005

 			B axis positioning accuracy(table rotation)
 			"
 			10"

 			B axis repeated positioning accuracy(table rotation)
 			"
 			5"

 			Weight of machine tool
 			kg
 			7500

 			External dimensions
 			mm
 			4600*3200*3000



Details Display:

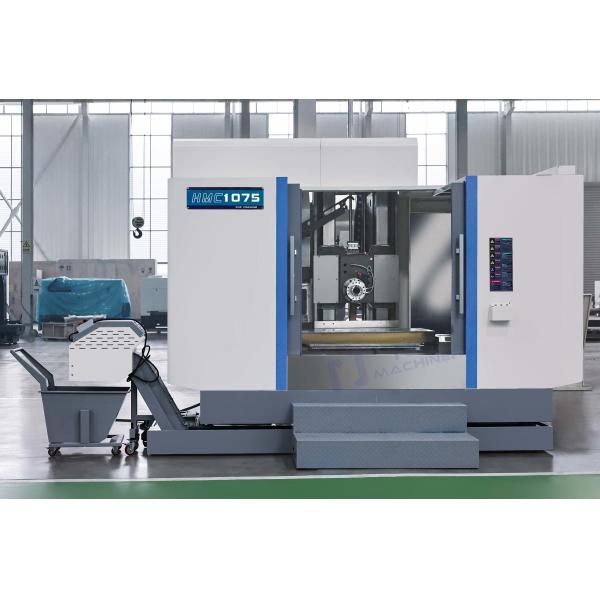

3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine

Product Tags:

3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine

3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine

3 Axis Horizontal Machining Center

HMC1075 Horizontal Machining Center

BT40 horizontal cnc milling machine

3 Axis Horizontal Machining Center HMC1075 Horizontal CNC Milling Machine Images

Item Model	Unit	HMC1075
Size of worktable	mm	1300*600
Table travel around	mm	1000
Forward and backward travel of workbench	mm	750
Up and down stroke of spindle box	mm	600
Distance from spindle center to worktable surface	mm	150-900
Distance from spindle end to table center	mm	90-690
T-shaped groove for table	mm	5-18*100
Maximum load-bearing table	kg	800
Main motor power	kw	7.5/11
Spindle Taper		BT40
Spindle speed	rpm	8000
Cutting feed rate	mm/min	1-10000
Fast speed	m/min	24/12/24
X/Y/Z ball screw specification	-	4012/5010/4012
X/Z Axis rail specification	-	45/55
Tool Magazine	-	Disc
Maximum tool diameter	mm	112/200
Maximum too length	mm	400
Maximum weight of tool	kg	18
Tool exchange time	sec	3
Minimum set unit of machine tool	mm	0.001
X/Y/Z orientation accuracy	mm	±0.0075
X/Y/Z repeated positioning accuracy	mm	±0.005
B axis positioning accuracy(table rotation)	"	10"
B axis repeated positioning accuracy(table rotation)	"	5"
Weight of machine tool	kg	7500
External dimensions	mm	460032003000
