HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis

Brand Name : Zaozhuang NO.1

Model Number : HMC1614

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 58000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1000x1600

X/Y/Z Axis stroke（mm） : 1600X1400X1200

pindle end taper/diameter（mm） : BT50/Φ190

Maximum load on table（kg） : 3000

Workbench T-slot (number - size x pitch) : 7-22x140

Spindle motor power（kw） : 22

Form of Tool Magazine : Disc／Chain

Contact Now

HMC1614 Horizontal Machining Center BT50 Horizontal Cnc Milling Machine for Sale
Product Description:
The HMC1614 is a high-precision inverted T-type horizontal machining center, ideal for efficient part processing. Its horizontal layout and transverse worktable movement ensure stable operation. The rigid cast iron bed supports large, heavy workpieces. Equipped with a high-speed spindle and automatic tool changer, it boosts productivity. Featuring multi-axis control and a 360° rotary worktable, it enables complex, multi-sided machining.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 6000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 30 -Disc- atc
Optional Configuration:
1.control system:Siemens, FANUC, Mitsubishi, GSK,KND
2.Coolant through spindle(CTS)
3.Screw type chip conveyor
4.chain tvpe chip conveyor
5.Vertical 4-axis turntable (800/1000)
6.5- axis turntable
Product Specification:
item
value
Table Size (mm)
1000*1600
Table Travel (X) (mm)
1600
Table Travel (Y) (mm)
1400
Condition
New
Spindle Taper
BT50
No. of Spindles
Single
Type
Horizontal
Weight (T)
13
Table Travel (Z) (mm)
1200
Positioning Accuracy (mm)
±0.005
Repeatability (X/Y/Z) (mm)
±0.003
Range of Spindle Speed(r.p.m)
0r.p.m - 6000r.p.m
Max. Table Load(kg)
3000kg
Min. Time of Tool Change(s)
2
Tool Magazine Capacity
24
Warranty
2 Year
X/Y/Z guide rail form
45/55/box way
X/Y/Z Axis motor power
6/5/5kw
X/Y/Z Axis motor torque
38/30/30 NM
T-slot
7-22*140
Casting machine
HT300 gray cast iron
Control system
GSK SIEMENS FANUC
Brand
NO.1MACHINERY
Motor
22KW Wide area servo motor

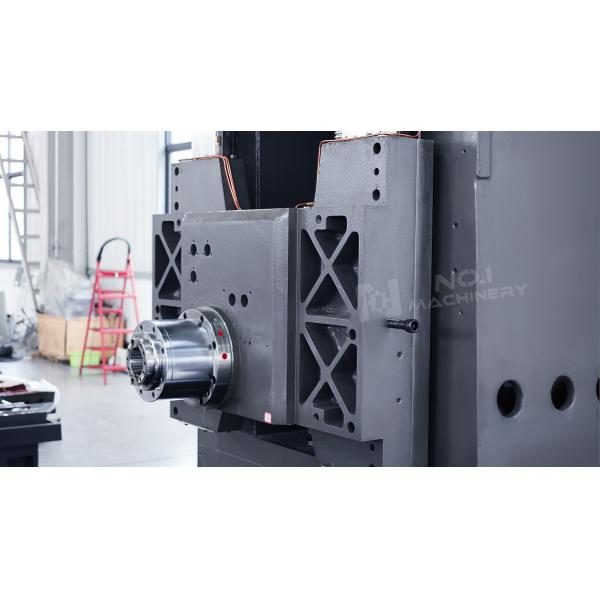

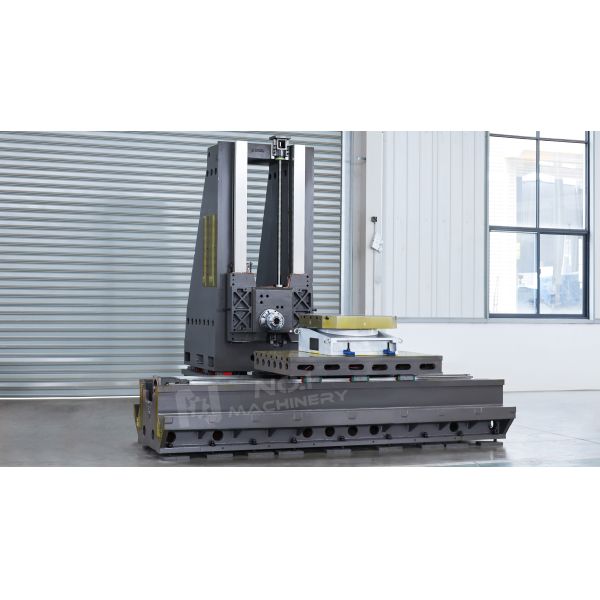

Details Display:

HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis

HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis

HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis

HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis
