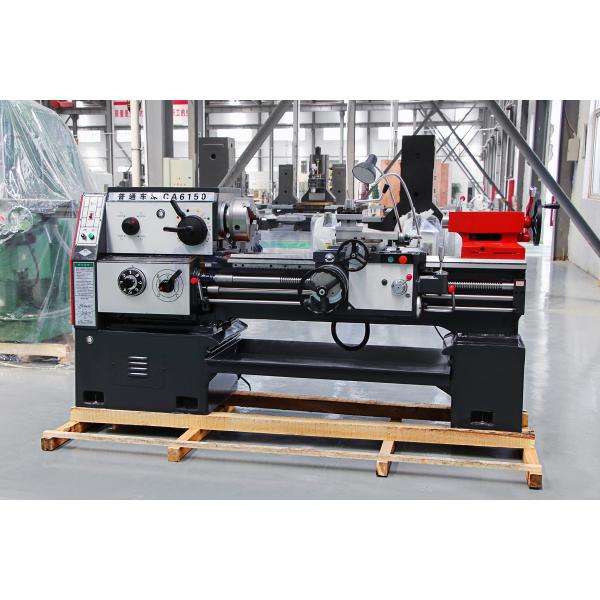

Horizontal Torno Universal Lathe Machine Metal Manual Lathe CA6150

Name: Horizontal Torno Universal Lathe Machine Metal Manual Lathe CA6150
Brand: Zaozhuang NO.1
Price: 6500 USD

China Horizontal Torno Universal Lathe Machine Metal Manual Lathe CA6150 wholesale

Brand Name : Zaozhuang NO.1

Model Number : CA6150

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 6500USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max. swing over bed : 500mm

Rotation diaeter on tool post : 300mm

Swing diameter in saddle x effective length : 720x210mm

Maximum workpiece length / Maximum turning length : 750/1000/1500/2000/3000mm

Distance from spindle center to bed plane guide : 250mm

Spindle Bore/Spindle Bore Front Taper : Φ52/MT6[80]

Tool holder section size : 25x25mm

Spindle speed range forward : 50Hz:1-1600 60Hz:12-1680 r/min

Main motor power : 7.5kw

Contact Now

Best Selling Horizontal Torno Universal Lathe Machine Metal Manual Lathe CA6150

The CA6150 is a classic horizontal manual lathe featuring a high-strength cast iron bed and a precision gear drive system, ensuring stable machining and durability. With a spindle diameter of 52/80mm and a maximum swing diameter of 500mm, it is equipped with a 7.5kW main motor and a 25x25mm Powerful Tool Holder. It can perform a variety of turning operations, including external cylindrical, internal bore, and thread turning, making it widely used in machinery manufacturing and maintenance.

Standard Configuration:

400mm Guide rail width 400mm

Skateboard Box with rapid advance and retreat

Processing thread variety, no need to change gear

Powerful Tool Holder:25x25mm

Can be heavy cutting

Optional Configuration:

Center rack and knife rack

Chuck protection, Tool Holder Protection, lead screw protection
Rear baffle
Digital display
Pedal to the brakes
Change the tool holder quickly
Four-jaw Chuck
Drill Chuck Joint Rod
Taper test scale
Specification:
 	 			PARAMETER ITEM
 			UNIT
 			CA6140
 			CA6240
 			CA6150
 			CA6250

 			Max. swing over bed
 			mm
 			400
 			400
 			500
 			500

 			Rotation diaeter on tool post
 			mm
 			210
 			210
 			300
 			300

 			Swing diameter in saddle x effective length
 			mm
 			-
 			630x210
 			-
 			720x210

 			Maximum workpiece length / Maximum turning length
 			mm
 			750/650 1000/900 1500/1400 2000/1900

 			Distance from spindle center to bed plane guide
 			mm
 			205
 			205
 			250
 			250

 			Spindle Bore/Spindle Bore Front Taper

 			Φ52/MT6[80]

 			Spindle speed series forward/reverse

 			24/12

 			Spindle speed range forward
 			r/min
 			50Hz:1-1600 60Hz:12-1680

 			Reverse
 			r/min
 			50Hz:14-1580 60Hz:16.8-1896

 			Vertical feed/Standard feed
 			mm/r
 			0.08-1.59

 			Minimum feed
 			mm/r
 			0.028-0.054

 			Maximum feed
 			mm/r
 			0.86-3.16

 			Rapid moving speed of tool holder
 			m/min
 			portrait4 horizontal2

 			Max stroke of upper/lower turret
 			mm
 			140/320
 			140/320
 			140/320
 			140/420

 			Rotation angle of tool rest turntable
 			.
 			±90

 			Distance from spindle centerline to tool support surface
 			mm
 			26

 			Tool holder section size
 			mm
 			25x25

 			Lead screw pitch
 			mm
 			12

 			Main motor power
 			kw
 			7.5

 			weight of lathe (750mm)
 			kg
 			1990
 			1990
 			2060
 			2060

 			weight of lathe (1000mm)
 			kg
 			2070
 			2070
 			2140
 			2140

 			weight of lathe (1500mm)
 			kg
 			2220
 			2220
 			2290
 			2290

 			weight of lathe (2000mm)
 			kg
 			2570
 			2570
 			2640
 			2640

 			Lathe outline size(750mm)
 			mm
 			2418x1000x1267
 			2418x1000x1267
 			2418x1037x1312
 			2418x1037x1312

 			Lathe outline size(1000mm)
 			mm
 			2668x1000x1267
 			2668x1000x1267
 			2668x1037x1312
 			2668x1037x1312

 			Lathe outline size(1500mm)
 			mm
 			3168x1000x1267
 			3168x1000x1267
 			3168x1037x1312
 			3168x1037x1312

 			Lathe outline size(2000mm)
 			mm
 			3668x1000x1267
 			3668x1000x1267
 			3668x1037x1312
 			3668x1037x1312

 Details Display:
