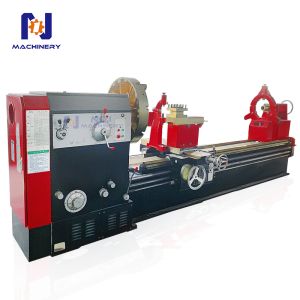

CW6180 Heavy Duty Mechanical Lathe Machine 220V 380V Conventional Manual Metal Lathe

Name: CW6180 Heavy Duty Mechanical Lathe Machine 220V 380V Conventional Manual Metal Lathe
Brand: Zaozhuang NO.1
Price: 13900 USD

China CW6180 Heavy Duty Mechanical Lathe Machine 220V 380V Conventional Manual Metal Lathe wholesale

Brand Name : Zaozhuang NO.1

Model Number : CW6180

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 13900USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 35 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max. swing over bed : 800mm

Rotation diaeter on tool post : 480mm

Guide rail width : 600mm

Spindle through hole diameter : 105mm

Spindle bore taper : MT6

Main motor power : 11kw

Contact Now

CW6180 Heavy-Duty Mechanical Lathe Machine 220V 380V Conventional Manual Metal Lathe

The CW6180 is a heavy-duty horizontal lathe with high-strength cast iron bed, offering 800mm max.swing diameter and 1500/2000/3000mm center distance options. Equipped with 18-speed gearbox and 130mm spindle bore, it's ideal for roughing/finishing large shafts and discs in machinery manufacturing.

Product features:

MANUAL CHUCK:The standard version is equipped with a 3-jaw or 4-jaw manual chuck

FOUR-STATION TOOL HOLDER:Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.

GEAR SPINDLE BOX:Classic gear shifting device, gear engagement is more accurate/fast

STEADY REST:Steady rest are optional accessories, need extra cost.

QUENCHED TAILSTOCK:The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.

2 AXIS DRO:2 axis digital readoutis optional accessory,clinets can choose it asrequirement.

Product specification:
 	 			Specification
 			Unit
 			CW6180

 			Swing over bed
 			mm
 			800

 			Swing over cross slide
 			mm
 			480

 			Distance between center
 			mm
 			4000

 			Guideway width
 			mm
 			600

 			Max.loading capacity
 			t
 			1.5

 			Spindle bore
 			-
 			130

 			Spindle bore taper
 			-
 			Metric-120/MT6

 			Spindle nose type
 			-
 			1:30

 			Spindle speed steps

 			FWD.21 STEP

 			Spindle speed range
 			rpm
 			18,5.4-720

 			Chuck
 			mm
 			500-4-jaw manual

 			Turret/tool post
 			-
 			4-station

 			Tool size
 			mm
 			32*32

 			X axis travel
 			mm
 			480

 			Z axis travel
 			mm
 			3750

 			X axis feed grade/range
 			Mm/r
 			64/0.05-6

 			Y axis feed grade/range
 			Mm/r
 			64/0.1-2

 			X axis rapid traverse
 			Mm/min
 			1870

 			Y axis rapid traverse
 			Mm/min
 			3740

 			Metric thread grade/range
 			mm
 			44/1-120

 			Inch thread grade/range
 			T.P.I
 			31/28-3/8

 			Module thread grade/range
 			mm
 			-

 			DP thread grade/range
 			D.P
 			-

 			Tailstock quill diameter
 			mm
 			100

 			Tailstock quill taper
 			-
 			80

 			Tailstock quill travel
 			mm
 			250

 			Main motor power
 			kw
 			11

 			Rapid traverse motor
 			kw
 			1.5

 			Coolant pump motor
 			kw
 			0.125

 			Width * height
 			mm
 			1500*1575

 			Length
 			mm
 			6100

 			Net weight
 			t
 			5500

 Details Display:
