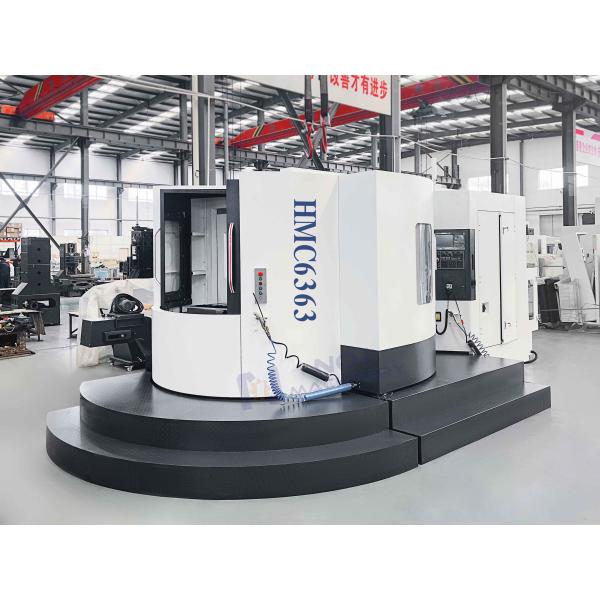

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable For Metal Processing

Brand Name : Zaozhuang NO.1

Model Number : HMC6363

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 96000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 630*700

X/Y/Z Axis stroke（mm） : 1050*750*900

pindle end taper/diameter（mm） : BT50-190

Maximum load on table（kg） : 800

X/Y/Z rail width（mm） : 45/45/55

Spindle motor power（kw） : 15

Form of Tool Magazine : Disc／Chain

Contact Now

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable for Metal Processing
Product Description:
The HMC6363 is a horizontal machining center known for its high precision and efficiency in machining various parts. The machine can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency.The automatic rotation and exchange of double pallets can notonly complete the multi-faceted processing of parts, but alsoprocess while loading and unloading workpieces, overlapping the auxiliary time of loading and unloading workpieces with theprocessing time, so as to achieve an efficient automatic process.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 30 -Disc- atc
6.Double-station switching worktable
Product Specification:
Item Model
Unit
HMC6363
Size of worktable
mm
630*700
Table graduation
mm
1°*360
Maximum load on table
kg
800
Number of worktables
2
X/Y/Z rail width
mm
45/45/55
X/Y/Z screw diameter
mm
4012/4012/5012
X/Y/Z Axis stroke
mm
1050*750*900
X/Y/Z motor torque
mm
18/28/28
Distance from spindle face to table
mm
130-1030
Distance from spindle center to column
mm
120-870
Cutting feed rate
mm/min
10000
X/Y/Z axis fast feed
mm/min
24/20/20
Spindle en taper
mm
BT50-190
Spindle motor power
kw
15
Maximum spindle speed
rpm
6000
Form of Tool Magazine
-
Disc/Chain type
Maximum tool diameter/weight
mm/kg
78-120/8
Tool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.005
Weight of machine tool
kg
13800
External dimensions
mm
5500*4500*2900
Details Display:

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable For Metal Processing

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable For Metal Processing

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable For Metal Processing

HMC6363 High Speed Horizontal CNC Machining Center Double Worktable For Metal Processing
