VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System

Name: VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System
Brand: Zaozhuang NO.1
Price: 40000 USD

China VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System wholesale

Brand Name : Zaozhuang NO.1

Model Number : VMC1370

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 40000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Size of worktable (mm) : 1400*700

Spindle end taper/diameter : BT40/50-150

T-shaped groove for table : 5-22*122

Maximum load on table（kg） : 100

X/Y/Z Axis stroke（mm） : 1300*700*700

Spindle speed（rpm） : 8000

Overall size(mm) : 3700*2750*2950

Contact Now

VMC1370 Big Cnc Milling Machine 3 Axis Vertical Machining Center with Fanuc Control Syste

CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening. Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.

Product Features:

High-precision castings, quenched to eliminate internal stress and ensure accuracy
CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
High-precision Taiwan spindle, good stability and long life
Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
 displacement and obtain the best cycle accuracy.
Fully automatic electronic lubrication system for uniform oil supply and good stability.

Standard configuration:

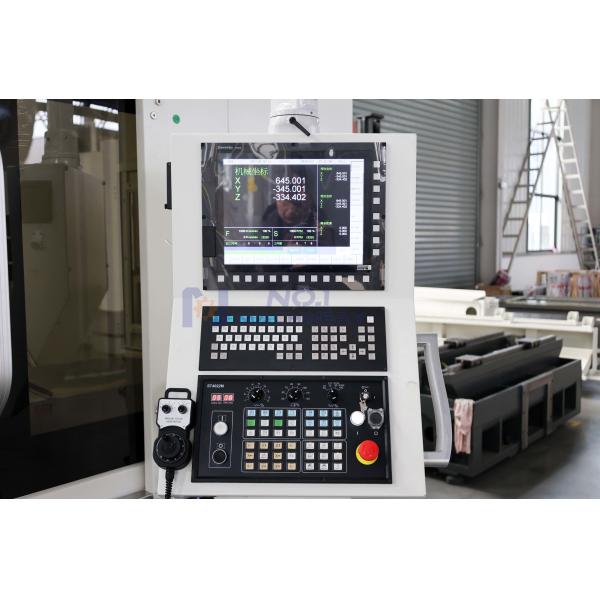

syntec 22ma control  system
bt40 Taiwan 8000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -disc-atc
Electrical cabinet cold  air exchanger

Product Specification:

Item Model	Unit	VMC1370
Size of worktable	mm	1400*700
T-shaped groove for table	mm	5-22*122
Maximum load on table	kg	1000
X/Y/Z rail width	mm	45/45/55
X/Y/Z ball screw specification	mm	5010/5010/5010
X/Y/Z Axis stroke	mm	1300700700
X/Y/Z motor torque	NM	18/28/20
Spindle face to table position	mm	140-840
Distance from Spindle Center to column	mm	785
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	24/24/24
Spindle end taper/diameter	mm	BT40/50-150
Spindle motor power	kw	15
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24
Maximum tool diameter/weight	mm/kg	78-120/7.8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	7000/7500
External dimensions	mm	370027502950

Product Display

VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System

VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System ·
